Diagnostic
HP Flexible Thin Clients
Significant performance and smart design
Significant performance and smart design
Outstanding multitasking efficiency.

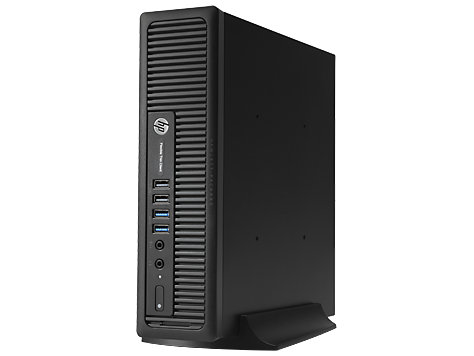

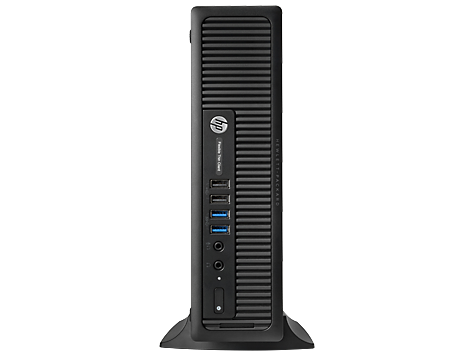

HP t820 Flexible Thin Client
HP’s most powerful, superfast Thin Client is the full-featured solution to boost efficiency and performance. Robust security options deliver superior data protection. Enable cost-effective, remote IT management—and simplify deployments—with the flexibility of a multi-protocol environment. Multiple monitors expand multitasking.
HP t820 Flexible Thin Client
HP t820 Flexible Thin Client
HP t820 Flexible Thin Client
HP t820 Flexible Thin Client
HP t820 Flexible Thin Client
Intel Core i5 processors
and graphics
Multi-monitor
support
Workstation-like
performance
Features
Fast or faster—your choice.
Propel performance with powerhouse processing. Work smoother and quicker, with two superfast CPUs to choose from—and brilliant, seamless graphics.*
Keep your business data safe— lock down sensitive information and meet compliance standards with robust encryption and security options, including fiber NIC, TPM, and Intel® vPro™ technology.
Keep business classified.
Give IT the advantage of flexibility with a multi-protocol environment. Simplify deployment and manageability—and enable a seamless desktop experience with the versatility of client virtualization.
The versatility of virtual.
HP Velocity.
Improved WAN performance with adaptive network analysis, packet loss protection, congestion detection, and wi-fi acceleration.
Specifications
-
System features
System features
-
- Operating system
-
Windows Embedded 8 Standard 64
Windows Embedded Standard 7E 32
Windows Embedded Standard 7P 64
- Processors
-
Intel® Core™ i7-4770S with Intel HD Graphics 4600 (3.1 GHz, up to 3.9 GHz with Intel Turbo Boost Technology, 8 MB cache, 4 cores)
Intel® Core™ i5-4570S with Intel HD Graphics 4600 (2.9 GHz, up to 3.6 GHz with Intel Turbo Boost Technology, 6 MB cache, 4 cores)
Intel® Pentium® G3240 with Intel HD Graphics (3.1 GHz, 3 MB cache, 2 cores)
Intel® Pentium® G3220 with Intel HD Graphics (3 GHz, 3 MB cache, 2 cores)
- Environmental
- Low halogen
- Browser supported
- Microsoft Internet Explorer 10 (for models with Windows Embedded 8 Standard, Windows Embedded Standard 7P or Windows Embedded Standard 7E)
- Maximum memory
-
16 GB DDR3L-1600 SDRAM
(Transfer rates up to 1600 MT/s )
- Internal drive
- 16 GB up to 32 GB MLC flash memory
-
Graphics
Graphics
-
- Graphics
-
Integrated Intel® HD Graphics
Integrated Intel® HD Graphics 4600
AMD Radeon HD 7650A (2 GB - MXM) optional
-
Communication features
Communication features
-
- Wireless
- Intel Centrino Advanced-N 6205 802.11a/b/g/n PCIe mini-card wireless network connection (optional)
- Protocols
-
Citrix ICA
Citrix HDX
Microsoft RDP
Microsoft RemoteFX (RFX)
VMware® Horizon View™ through RDP
VMware® Horizon View™ through PCoIP
(Protocols are dependent on operating system installed)
- Network interface
-
Intel I217LM Gigabit Ethernet network connection
(Either the integrated or the wireless network connection is required to support Intel vPro Technology features.)
-
Expansion features
Expansion features
-

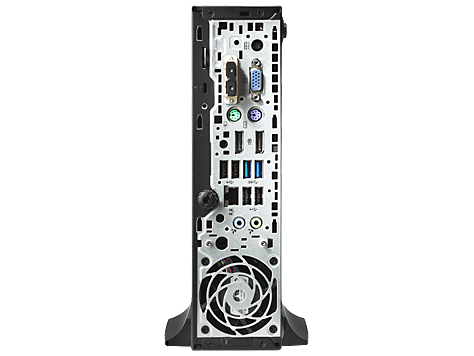

- Ports
-
4 USB 3.0
6 USB 2.0
2 PS/2
1 VGA
2 DisplayPort
1 microphone
1 headphone
1 audio in
1 audio out
1 RJ-45
(When configured with an Intel® Pentium® processor, only two of the available video output ports are active)
- Expansion slots
-
1 PCIe mini-card
1 MXM
1 mSATA
-
Power and operating requirements
Power and operating requirements
-
- Energy efficiency
- ENERGY STAR® certified and EPEAT® registered configurations available 2
- Power
-
- 135 W 87% efficient, active PFC (for integrated graphics)
- 180 W 87% efficient, active PFC (for discrete graphics)
-
Media devices
Media devices
-
- Audio
- HD audio with Realtek ALC221 codec (all ports are stereo); Multi-streaming capable; Internal speaker
-
Dimensions and weight
Dimensions and weight
-
- Dimensions (W x D x H)
-
9.9 x 10 x 2.6 in (25.2 x 25.4 x 6.6 cm)
(without stand)
- Weight
-
6.8 lb (3.1 kg)
(without stand)
-
What's included
What's included
-
- Software
-
HP Remote Graphics Software (RGS)
HP Device Manager
HP ThinState
HP Easy Tools
Microsoft SCCM/EDM Agent
HP Velocity
HP Connection Manager
HP Cloud Connection Manager
HP ThinShell
HP Universal Print Driver 1
- Warranty:
- Three-year limited hardware warranty
-
-
1 Software availability varies by thin client configuration and operating system.
-
2 EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.
-
-
Our Partners
HP offers a complete hardware and partner software portfolio of client virtualization solutions for you to choose from.
Customer solutions
No matter what computing environment you’re operating in, there’s sure to be an HP Thin Client Solution that’s right for you.
Software
We developed the HP Virtual Client Essentials portfolio, giving you the most comprehensive capabilities of industry-leading software from VMware, Citrix, and Microsoft.
The buzz
“We save approximately 15 minutes per user because we don’t have to create a new user account for each application, and we can remotely manage deployment. We can cut our deployment time in half by using Thin Clients.”
Shawn David, Chief Technology Officer, Rockford Health System
© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Prices, specifications, availability and terms of offers may change without notice.
Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. See http://www.microsoft.com
AMD and AMD Radeon are trademarks of Advanced Micro Devices, Inc. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Citrix and XenDesktop are trademarks of Citrix Systems, Inc. and/or one more of its subsidiaries, and may be registered in the United States Patent and Trademark Office and in other countries.
All other trademarks are the property of their respective owners.
* The HP t820 platform ships with the Intel® Core™ i5 processor included; please contact the HP account manager on Intel® Pentium® processor availability.
